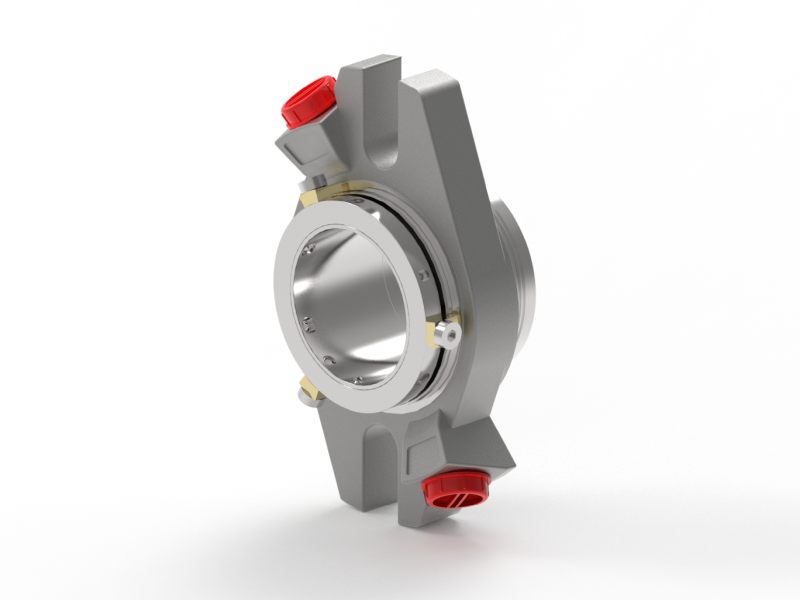

CRCS-1000 - Cartridge Rotary Compact Single with Flush/Vent Port with a 2-bolt gland fastening
The CRCS-1000 is a compact multi-spring, hydraulically balanced single cartridge rotary seal with flush (Plan 11 / 13 / 32) port and secondary O-RING seals.
The rotary cartridge seal has Shrink Fitted seal faces is designed for use with parallel rotating equipment shafts.
The design has a number of innovative design features and comes with Multi-Springs for even face loading and a two stud/bolt gland fastening. The cartridge seal is Set Screw Driven with the gland incorporating a Flush connection which can also be used for Venting the seal chamber.
The seal has a number of design features and comes factory assembled and tested.
Design Features:
- Rotary seal with multi-springs, positioned out of the process fluid.
- 1/4" NPT port connection
- Cartridge seal design for ease of installation. Seal faces are pre-set so, unlike component seals, there is no change of operator setting face load incorrectly
- Comes Flush/Vent Connection as standard
- Available in a large range of seal face materials to suit all applications.
Common Applications:
- Centrifugal Pumps – Used across industries for fluid movement.
- Process Pumps – Handles chemicals, oils, and other industrial fluids.
- Cooling Water Pumps – Essential in HVAC, power generation, and industrial cooling.
- Sanitary Pumps – Required for pharmaceuticals and food & beverage industries.
Safe Operating Limits:
This seal incorporates best practice features and innovation as detailed in our technical blogs and white papers.
** Apply "industry standard" Pressure, Speed and Temperature de-rating factors, by shaft size and application. The safe seal performance characteristics are typical characteristics for each variable in isolation. The individual upper limit values of each variable should NOT be used in multiple combinations of Speed, Pressure and Temperature. Contact our Technical Sales Department for further details.
